60's Strat / EVH Style Custom Relic Guitar, Mahogany, TV Yellow*SOLD - $450 (kirkwood)
QR Code Link to This Post
Description

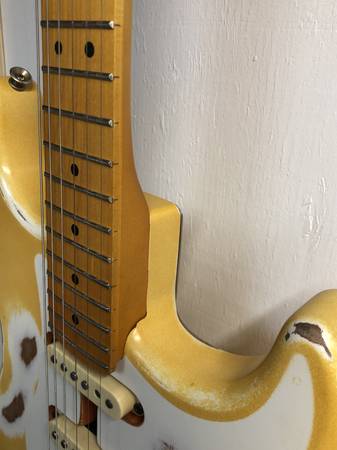

60’s Style Strat, with Mahogany 2-piece body, SSS pickup configuration with original Fender® RoadWorn hardware where applicable.This is a faithful recreation of those transitional year’s model, with several compelling custom modifications ideal for all players. Relic lacquer finish with the perfect amount of wear. The Canadian maple neck has a Modern “C” profile, ”-radius maple fingerboard and 22 - Medium Jumbo Nickel frets.

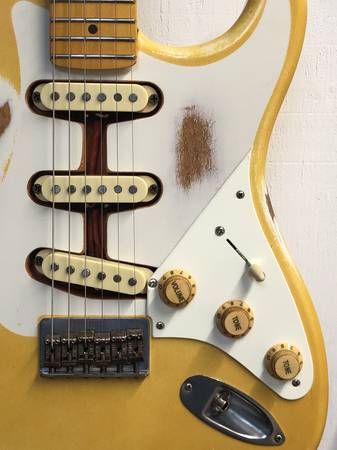

G.M. 62'z Alnico 5 Single Coil Pickup Set (Cream). Alnico 5 Single coils in vintage output. Nice warm sound without being shrill like ceramic magnets. Replicated to sound like classic 60's single coils. Other features include a single-ply aged white pickguard, Fender® Custom Shop Vintage Hardtail, GOTOH vintage-style tuning machines, bone nut, and wing string tree with tall metal spacer.
This guitar was assembled by Adam Burke, builder/finisher with only the finest quality parts available from various vendors, but are brand new and one of a kind combinations of colors/finishes as well as hardtail bridges in colors not available. Vendors are noted so you can see the quality and material costs for yourself!
Fender® and the distinctive headstock designs commonly found on the Strat® guitars are registered trademarks of Fender Musical Instruments Corporation
Specifications
General
60’s Style Strat, Mahogany, S S S -G.M. 62’z pickups, and Faded Aged TV Yellow
Adam Burke - Builder / Custom finisher
Series: Custom Relic (medium worn)
Color: Faded Aged TV Yellow / over Vintage White Nitro
Body
Body Shape: Strat-Style
Body Material: Mahogany 2 piece
Body Finish: Nitro Lacquer- Oxford Brand
Neck
Neck Material: Canadian Maple
Neck Shape: Modern "C"
Scale Length: 25.5" (648 mm)
Fingerboard Radius:
Number of Frets: 22
Fret Size: Medium/Jumbo (2.7mm)
String Nut: Bone
Nut Width: 1.650" (42 mm)
Neck Finish: Nitrocellulose Lacquer - Amber tint, Satin finish
Fingerboard: Canadian Maple
Position Inlays: Black Dot
Electronics
Bridge Pickup: G.M. 62'z Alnico 5 Single Coil Pickup Set (Cream) 6.4 K
Middle Pickup: G.M. 62'z Alnico 5 Single Coil Pickup Set (Cream) 6 K
Neck Pickup: G.M. 62'z Alnico 5 Single Coil Pickup Set (Cream) 6 K
Controls:
Tone Hounds Deluxe USA Wiring Harness - B22S- Orange Drops for Fender Strat
-Master Volume, Tone 1. (Neck/Middle Pickups), Tone 2. (Bridge Pickup)
Pickup Switching: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle
Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup
Pickup Configuration: SSS
Output jack- Switchcraft
Hardware
Bridge: Fender® Custom Shop Vintage Hardtail
Tuning Machines: GOTOH- RoadWorn Vintage-Style Nickle
Orientation: Right-Hand
Hardware Finish: Fender® Nickel/Chrome (RoadWorn)
Pickguard: Single-Ply Aged White (custom-cut)
Control Knobs: Aged White (custom finished)
Switch Tips: Aged White
Miscellaneous
Strings: Nickel Plated Steel (.010-.046 Gauges) D’addario
