Folder - Baum 714XE Ultrafold Air Feed with Cart - $3,500 (Cartersville)

Folder - Baum 714XE Ultrafold Air Feed with Cart 1

Folder - Baum 714XE Ultrafold Air Feed with Cart 1 thumbnail

riverside drive sw

google map

condition: excellent

make / manufacturer: Baum

model name / number: 714XE

size / dimensions: 26″ H x 34″ L x 23 1/2″ W

QR Code Link to This Post

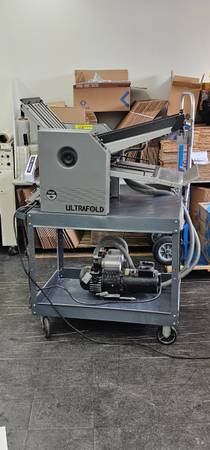

The Baumfolder Ultrafold 714 Air Feed is a versatile and unique machine, capable of folding paper measuring between 3″ x 5″ and 14″ by 20″ , at speeds of up to 35,000 sheets per hour of 8 1/2″ x 11″ and up to 65,000 sheets per hour of 3″ x 5″. The Baumfolder Ultrafold 714 is capable of making up to six types of folds: Letter Fold, Fan Fold, Double Parallel Fold, Single Fold, French Fold, Double Letter Fold, and Engineering Fold.
DIMENSIONS: 26″ H x 34″ L x 23 1/2″ W
PAPER FOLDER DETAILS:
–Sheet Size: 3″ x 5″ – up to – 14″ x 20″
–Stack Height: 2″
–Min. Size Fold: 2 1/4″
–Max. Paper Weight: 65 lb. Cover

FOLD ROLL SPECIFICATIONS:

-Fold Roll Speed: Infinitely variable between 0″/min. and 7200″/min.

-Fold Plate Depth: #1 Plate: 13.5″, #2 Plate: 13.5″

-Fold Roll Width: 14 1/8″ (35.8 cm)

–Fold Roll Diameter: 1 1/2″ (3.8 cm)

ELECTRICAL SPECIFICATIONS:

–Power Consumption Folder: 250 Watts

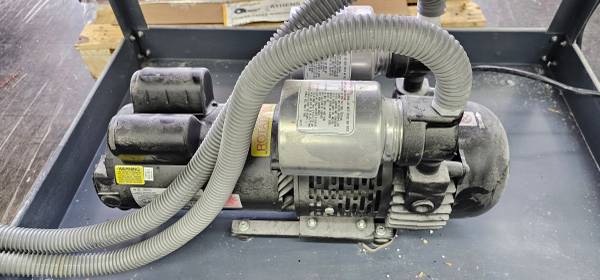

–Pump: 1500 Watts
–Amperage (Pump): 13.6 Amps

-115 Volts, 60 Hz, 14 Amps, Single Phase
